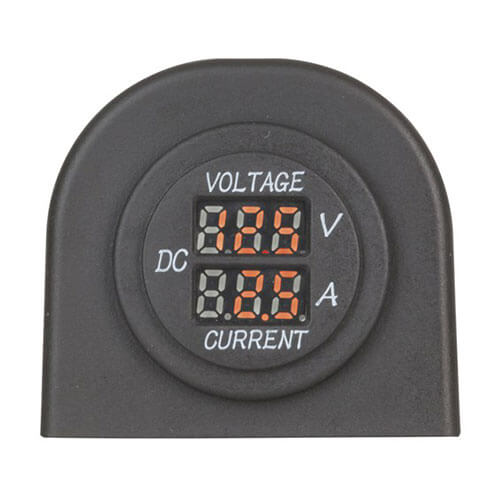

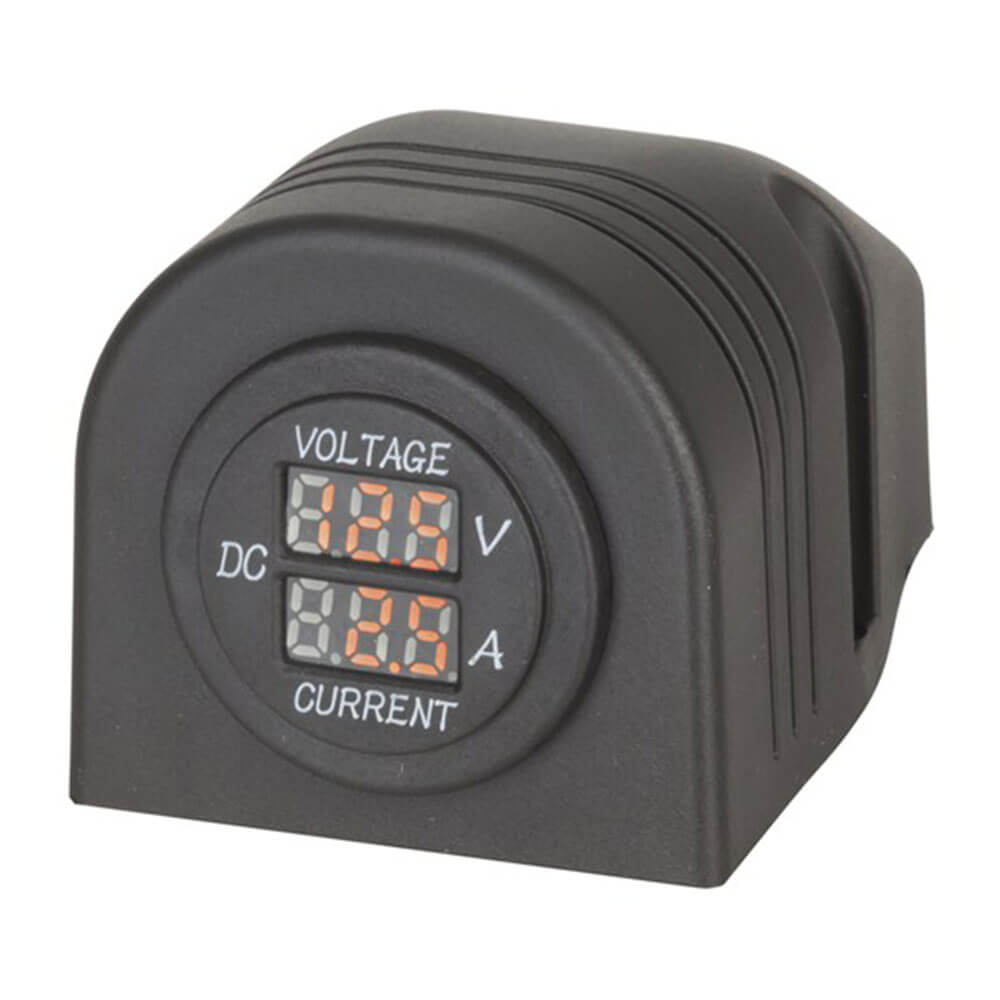

Quite possibly the easiest way to monitor battery voltage and current draw on your van, RV or boat. Simply follow the included wiring diagram to measure 5-30VDC and 0 to 10A DC.
Product Specifications
- Supplied with brackets for panel or surface mounting
- Connection is via three 6.3mm spade terminals (current shunt in-built)
- Also available with additional modules
- Current DC Measuring Range : 0.0A, 10.0A
- DC Volts Measurement Range : 5.0V, 30.0V
- Digits Displayed : 3.0 digit
- Display Type : LED
- Display Backlight : Red LED Backlit
- Width : 60.0mm
- Height : 42.0mm
- Dimensions for : Including Bracket
- Dimension details : Panel Mounting
- Mounting Method : Panel
- Attachment / Securing Method : Collar / Nut
- Dimension details : Including Bracket
- Dimensions for : Under Dash / Surface Mount Hood
- Width : 55.0mm
- Height : 50.0mm
- Depth : 80.0mm
- Dimensions for : Without Bracket
- Dimension details : Voltmeter/ammeter module
- Depth : 40.0mm
- Diameter : 36.0mm
- Length : 18 cm
- Width : 8 cm
- Height : 5 cm
