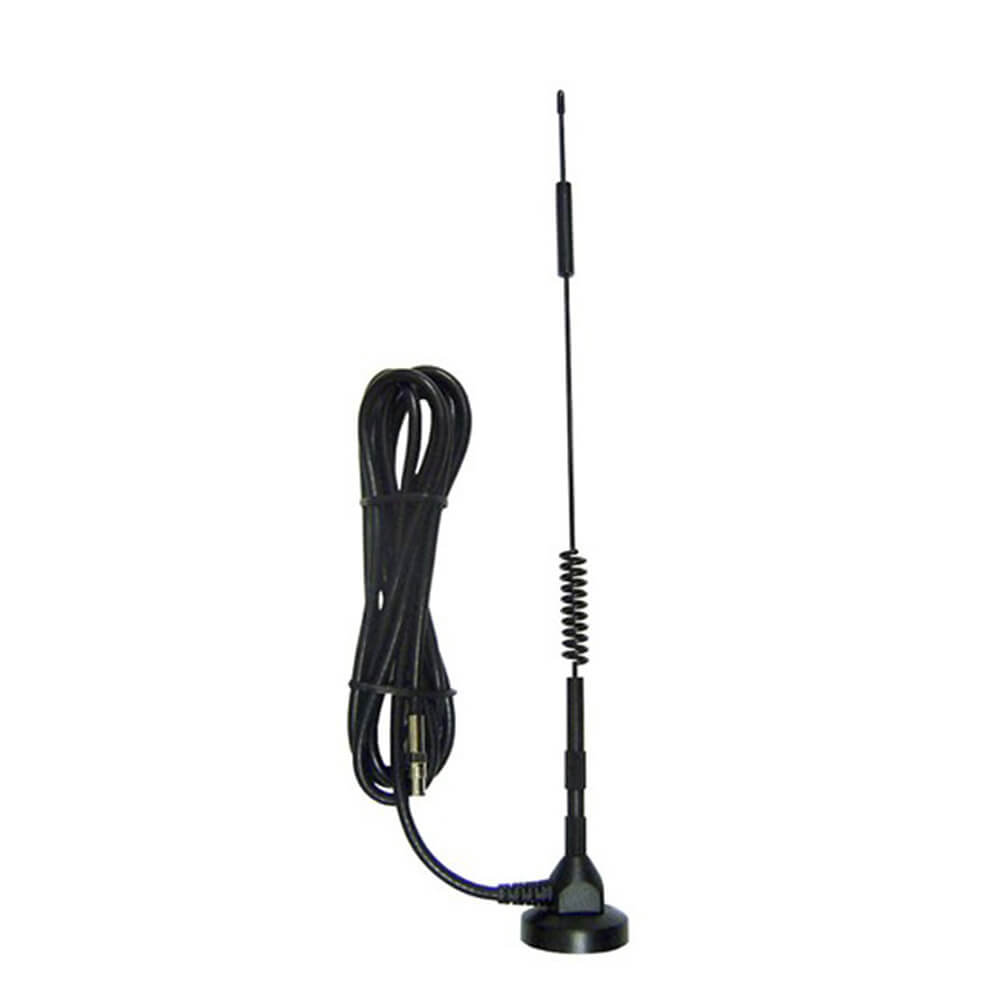

Designed to help boost 4G data signals for a reliable flow of data. Features a strong magnetic base so you can fix it to the roof of your vehicle or any other steel surface. Designed to support 700~960, 1710~2170, and 2500~2700MHz frequency ranges. The 3m cable is terminated with an SMA male connector.
Product Specifications
- Operating Temperature : -30.000000 Degrees C, 70.0 Degrees C
- Storage Temperature : -35.000000 Degrees C, 75.0 Degrees C
- Network Type : 4G
- Type : Dipole
- Device Connection : SMA
- Antenna Frequency : 700.0MHz, 2700.0MHz
- Antenna Gain : 7.0dBi
- Maximum Transmitter Power : 50.0W
- Detachable : true
- V.S.W.R : ≤2.0:1
- Radiation : Omnidirectional
- Impedance : 50
- Polarization : Vertical
- Dimensions for : Antenna
- Length : 435.0mm, 0.0mm
- Diameter : 40.0mm, 0.0mm
- Cable length : 3.0m
- Weight : 300.0g
- Mounting Method : Magnetic
- Length : 38 cm
- Width : 12.5 cm
- Height : 4.5 cm
